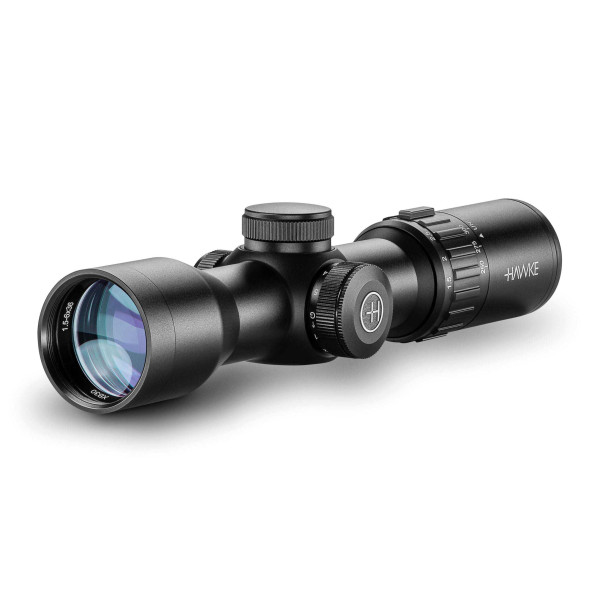

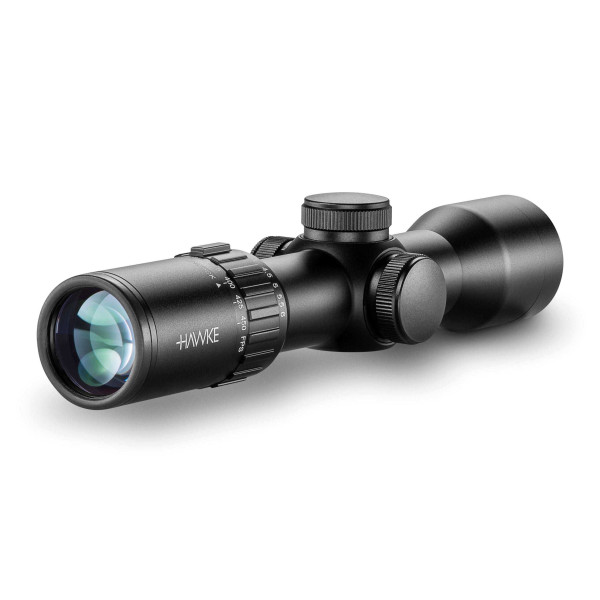

Hawke XB30 Compact Scope
Discover the Hawke XB30 scope, designed to tame the power of crossbows. With its wide-angle design and lockable speed adjustment ring, the XB30 is optimized for precision and durability. At Hawke, "we didn't invent scopes, but we perfected them."
Hawke XB30 Scope
This Hawke scope is designed to withstand the power of crossbows, equipped with a highly precise reticle to improve shooting accuracy.
The XB30 Compact scopes offer a wide-angle design to maximise visibility, a lockable speed adjustment ring that ensures the FPS setting is maintained once calibrated. They feature a multi-line reticle with aiming points up to 100 yards, including windage bars!
Aiming points from 20 to 100 yards with intermediate marks every 5 yards. Every 10 yards, the aiming points are enhanced with lateral markers in the form of bars and dots to compensate for winds of 10mph and 20mph.
Summary: All of this makes it an ideal scope for anyone who wants to hit the mark regardless of distance. Once you have zeroed the scope you will be able to shoot very accurately from 20 to 100 yards (if you have a rangefinder to measure the distance, even better), you can even compensate for wind using the windage marks.
Supplied without rings, plan to order scope rings with a 30mm internal diameter.
Hawke XB30 scope features:
- Nitrogen purged
- Shockproof
- Waterproof and fog-proof
- Fixed parallax at 46 metres
- 30mm single-tube chassis
- Suitable speeds from 250 to 450 fps
- Illumination (red dot function, red and green)
- Low-profile adjustment turrets of 1/2 MOA
- Fully multi-coated optics (14 layers)
- Heavy-duty magnification ring
- Fast focus eyepiece
Hawke XB30 scope technical specifications:
| Model | 1.5-6 x36 | 2-8 x36 |
| Focus | Fixed | Fixed |
| Lens | 36 mm | 36 mm |
| Reticle | XB30 Compact SR | XB30 Compact SR |
| Magnification | 1.5 - 6x | 2 - 8x |
| Optical system | System H2 | System H2 |
| Focal plane | SFP (Second Focal Plane) | SFP (Second Focal Plane) |
| Scope tube | 30mm | 30mm |
| Illumination | 5 brightness levels - Red/Green | 5 brightness levels - Red/Green |
| Field of view | 29.3 - 7.3m @100m (87.9 - 21.9ft @100yds) | 21.9 - 5.5m @100m (65.7 - 16.4ft @100yds) |
| Field of view (°) | 16.7 - 4.2 | 12.5 - 3.1 |
| Eye relief | 76mm | 76mm |
| PX/Focus | 46m | 46m |
| Exit pupil | 24 - 6mm | 18 - 4.5mm |
| Turret type | Capped | Capped |
| Turret caps | Yes | Yes |
| Click value | 1⁄ 2MOA | 1⁄ 2MOA |
| Elevation adjustment (max) | 180 MOA | 180 MOA |
| Windage adjustment (max) | 180 MOA | 180 MOA |
| Eyepiece type | Fast focus | Fast focus |
| Power selector | Lockable in Speed Adjuster position | Lockable in Speed Adjuster position |
| Lens treatment | Fully multi-coated | Fully multi-coated |

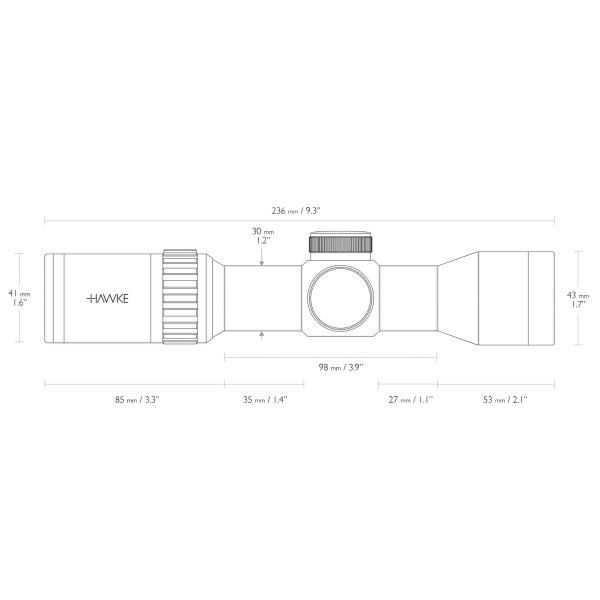

| Length | 236mm | 256mm |
| Weight | 429g | 435g |
Technical sheet
- Brand
- Hawke Optics
- Diameter
- 30mm
- Zoom
- 2-8×36
- Zoom
- 1.5-6x36
- Rail width
- 11mm
- Rail width
- 21mm
- Sight type
- Magnifying Scope
- Sight type
- Red Dot
